Vacuumatic TCF2: Thickness Compensating Feeder

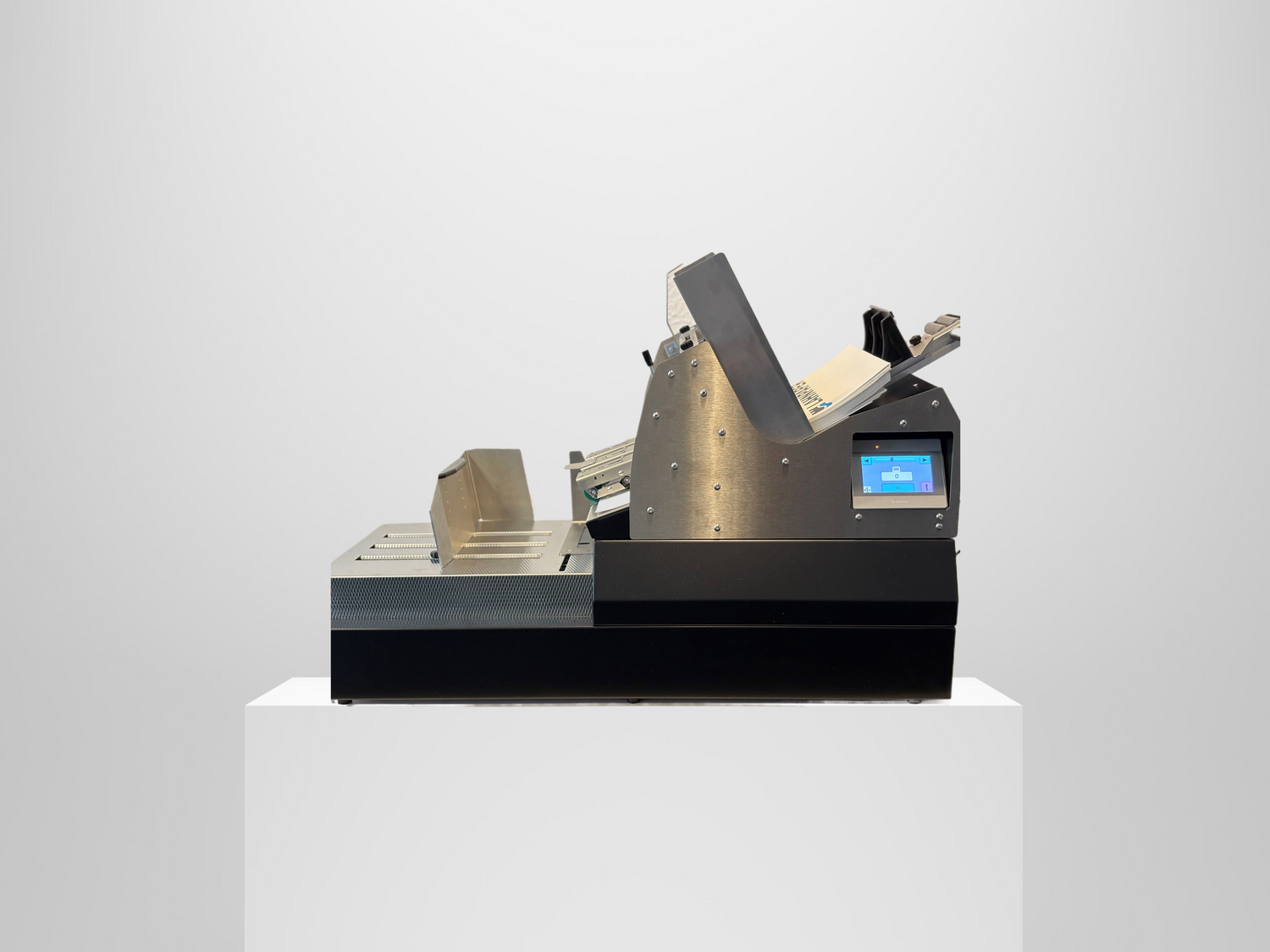

STAND-ALONE FRICTION FEEDER

TCF2

With the ability to feed products up to 15 mm thick. The TCF2 has a simple lever operation to allow even thicker products to be processed, in 5 steps: 0-1 mm, 0-5 mm, 3.5-8.5 mm, 7-12 mm, 10.5-15 mm. The maximum material size is300mm by 325mm .

  • Adjustable speed control up to 1.5m/second.
  • Adaptable to width, height and pile height.
  • Compatible with wide range of materials.
  • Loadable on the run for maximum throughput.
  • Simple to operate user interface.

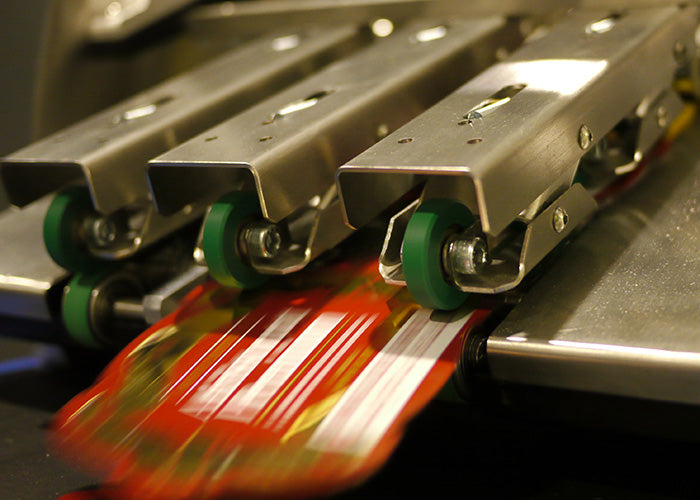

Unique self compensating separators allow reliable and consistent feeding even when the thickness is variable - from piece to piece or across each individual item.

CONVEYOR FRICTION FEEDER

TCF2 INLINE

All the features and benefits of the stand alone version of this friction feeder, but without the delivery tray making it easy to mount over or on existing processing systems for full integration with flow lines.

  • Easy integration via RS232 communication.
  • Second TCF could be mounted inline for a fully automated process.
  • Can be integrated into bespoke systems. For example, a camera inspection or barcode reader could be mounted over the TCF2 and when an error is detected, the bad product could be removed from production.

The thickness compensating feeder is an extremely versatile machine, for fast and accurate feeding counting and batching of products of fixed and mixed thickness.

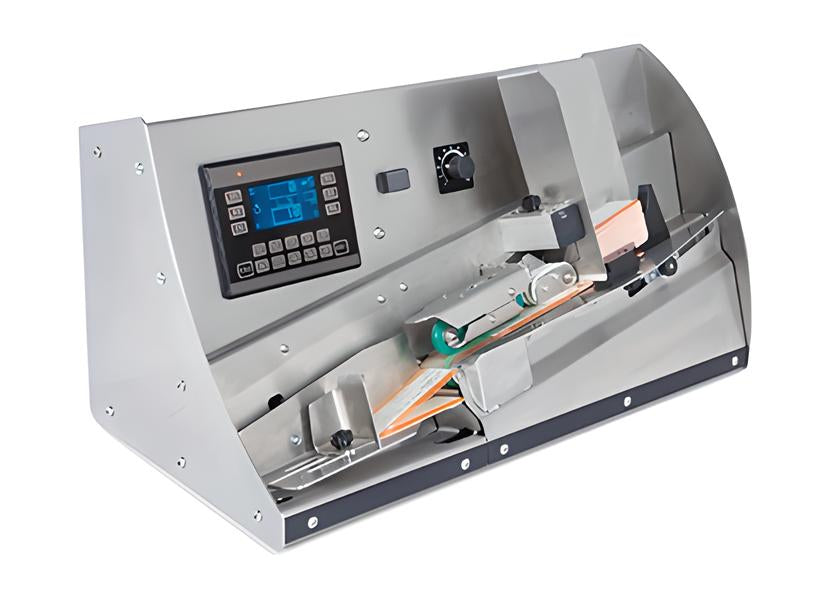

FRICTION FEED COUNTING MACHINE

MINI-TCF2

The Mini TCF2 can count smaller items from 70 x 146 mm down to 20 x 54 mm of same and variable thickness of up to 2 mm thick with no adjustment. Easy to set up and operate.

With its adjustable delivery tray and ease of set up and operation, the TCF2 is the most versatile feeder, counter and batcher on the market with adjustments for product length, width and pile height.

CONTACT US TO REQUEST FOR A QUOTATION OR FOR A PRODUCT DEMONSTRATION
